HOME > Products > Energy Systems Field > SICONEX > Outdoor Termination
Outdoor Termination
Outdoor cable terminations including porcelain type, polymer type and direct molded type termination are our main products. Depending on different types, outdoor terminations have various features as follows:

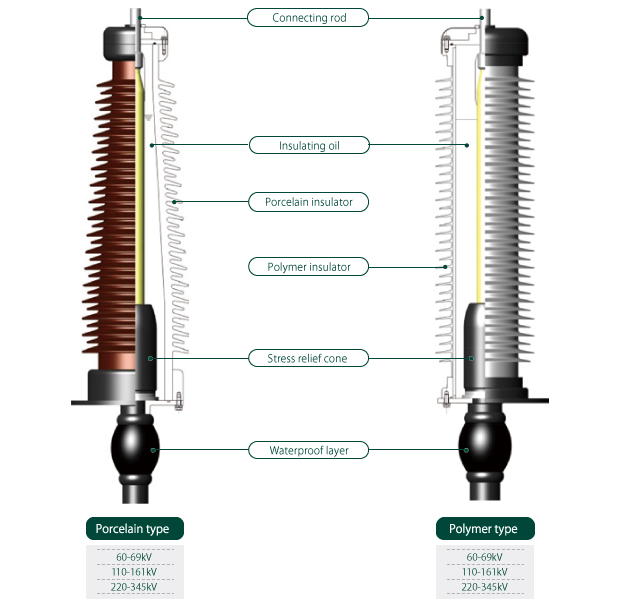

Porcelain type / Polymer type outdoor termination
This termination consists of a stress relief cone, insulating materials, and metals such as a protective cover and a connecting rod. It has a simple structure with stable performance. The stress relief cone is manufactured in a clean room by using high-quality silicon rubber. The insulating bushing can be provided with porcelain type one or polymer type one in accordance with the customer's requirements.

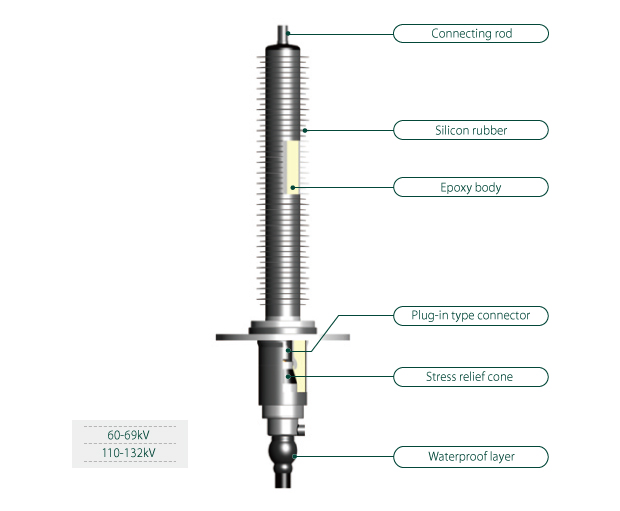

Direct Molded type outdoor termination
The termination has a solid insulated structure directly molded with an epoxy insulator and covered by silicone rubber outside the surface of the epoxy insulator. The product is completely free from liquid insulation and has a very simple structure compared with conventional type (porcelain type / polymer type). It can be applied in high pollution zone.
Installation situation
Porcelain type
Polymer type
Direct molded type
