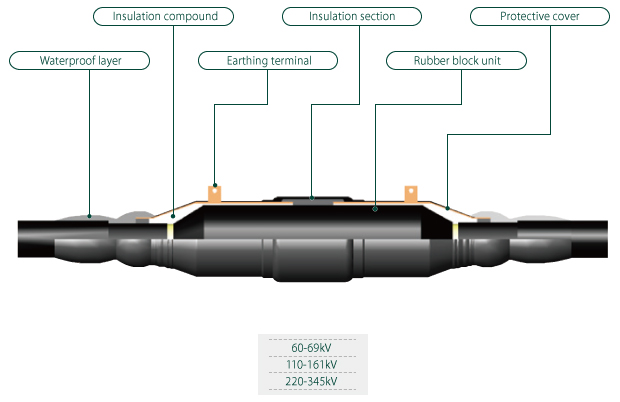

The premolded straight joint consists of a rubber block unit, insulation compound, a connector, and protective covers. The rubber block unit is premolded by using high-quality silicon rubber in the factory. It is pre-expanded with a spiral core in the factory and can be installed only by pulling the spiral core at the site. Therefore the special tools and high skill are unnecessary at the assembly process, so those shorten the assembly time and stabilize the product's performance.
According to the customer's requirements, a coffin box can be used optionally. The joint without coffin box can also meet waterproof requirements due to its protective copper tube with plastic waterproof coating.

•
  Premolded joint with coffin box
•
  Premolded joint without coffin box

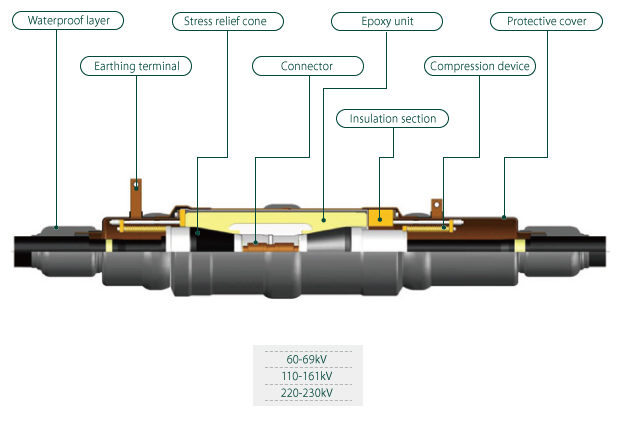

The prefabricated joint consists of an epoxy unit, a connector, two stress relief cones, and two protective covers. The surface pressure between the cable, the stress relief cone, and the epoxy unit is maintained and guaranteed by a mechanical force of the compression device's springs. So the stabile performance is demonstrated by more past records.
According to the customer's requirements, a coffin box can be used optionally. The joint without coffin box can also meet waterproof requirements due to its protective copper tube with plastic waterproof coating.

•
  Prefabricated joint without coffin box

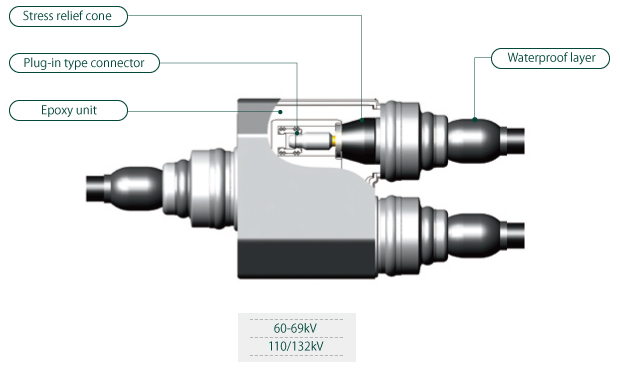

The Y branch joint consists of an epoxy unit, three stress relief cones, and three compress units. The epoxy unit is made from highest grade epoxy resin and manufactured under the contamination-free condition. It has a small dimension compared with the conventional type and can cover XLPE cables with conductor size up to 1200mm². The Y branch joint is a dry-type structure without oil/gas-filling so that there is no need to maintain regularly and there is no factor of fire trouble.

•
  Y branch joint with coffin box
•
  Y branch joint without coffin box
