Fixed Optical Attenuator

HOME > Products > Optical Cable Assembly > Fixed Optical Attenuator

The Fixed Optical Attenuator by using metal-ion doped fiber can control optical power to desired levels.

Features

The following features can be obtained, using by metal-ion doped optical fibers.

●Simple structure
●Superior durability
●Low polarization dependence
●Low wavelength dependence
●High return loss
●The telecordia GR-1209-CORE
and GR-910, 1221-CORE conformed

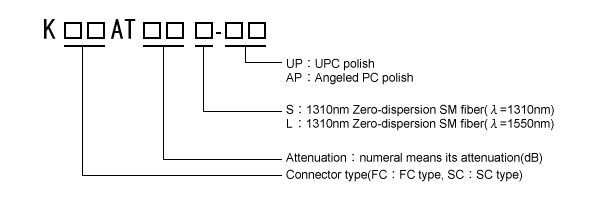

Ordering Information

Comparison

Items	SHOWA's product	Other's product
Structure
Principle	Absorption by metal-ion doped fiber	Absorption by metal coated mirror
Polishing	2 surfaces to be polished	4 surfaces to be polished
Material	metal-ion doped optical fiber with one ferrule	Optical fiber - metal coated mirror with 2 fibers
Durability	about 100mW	about 10mW

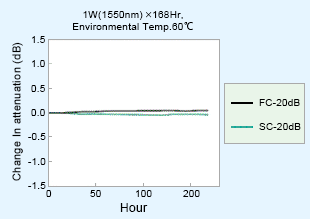

Power durability

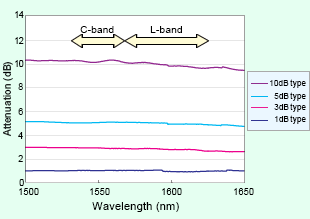

Wavelength dependence

Specifications

Type	Type No.	Attenuation (dB)	Wavelength (nm)	Return loss (dB)
FC type	KFCAT01SL-UP	1	1310 & 1550	≧50 UPC polish
	KFCAT02SL-UP	2
	KFCAT03SL-UP	3
	KFCAT04SL-UP	4
	KFCAT05SL-UP	5
	KFCAT06SL-UP	6
	KFCAT07SL-UP	7
	KFCAT08SL-UP	8
	KFCAT09SL-UP	9
	KFCAT10SL-UP	10
	KFCAT15SL-UP	15
	KFCAT20SL-UP	20
SC type	KSCAT01SL-UP	1	1310 & 1550	≧50 UPC polish
	KSCAT02SL-UP	2
	KSCAT03SL-UP	3
	KSCAT04SL-UP	4
	KSCAT05SL-UP	5
	KSCAT06SL-UP	6
	KSCAT07SL-UP	7
	KSCAT08SL-UP	8
	KSCAT09SL-UP	9
	KSCAT10SL-UP	10
	KSCAT15SL-UP	15
	KSCAT20SL-UP	20
SC type	KSCAT01SL-AP	1	1310 & 1550	≧60 Angeled PC polish
	KSCAT02SL-AP	2
	KSCAT03SL-AP	3
	KSCAT04SL-AP	4
	KSCAT05SL-AP	5
	KSCAT06SL-AP	6
	KSCAT07SL-AP	7
	KSCAT08SL-AP	8
	KSCAT09SL-AP	9
	KSCAT10SL-AP	10
	KSCAT15SL-AP	15
	KSCAT20SL-AP	20
