弾性すべり支承／低摩擦（外観寸法資料）
- 各部材の図面（PDF・DXF形式）をご用意しています。以下のリンクよりダウンロードしてご活用ください。
- 各図面は私的・商用として自由に使用していただけますが、図面の再販売はお断りしております。

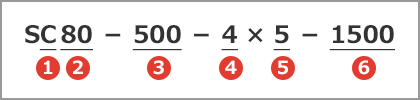

- 製品型式の一例
-
![SC[1]80[2]-500[3]-4[4]×5[5]-1500[6]](img/img_product02-03_01.png)
- 1すべり材の種類／A：高摩擦 B：中摩擦 C：低摩擦
- 2ゴム材料の種類／80←せん断弾性率：0.78（N/mm2）
- 3ゴムおよびすべり材の直径（mm）
- 4ゴム1層厚さ（mm）
- 5ゴム層数
- 6すべり板の外形 Lsus（mm）
- 400㎜変形すべり板
-
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード SC80-300-3×7-1100 SC80-300-3×8-1100 SC80-300-3×10-1100 - PDF [46.5KB] DXF [52.0KB] SC80-400-4×5-1200 SC80-400-4×6-1200 SC80-400-4×8-1200 SC80-400-4×10-1200 PDF [46.2KB] DXF [52.4KB] SC80-500-4×5-1300 SC80-500-4×6-1300 SC80-500-5×6-1300 SC80-500-4×10-1300 PDF [46.4KB] DXF [53.3KB] SC80-600-5×4-1400 SC80-600-6×4-1400 SC80-600-6×5-1400 SC80-600-6×7-1400 PDF [47.2KB] DXF [54.5KB] SC80-700-5×4-1500 SC80-700-6×4-1500 SC80-700-6×5-1500 SC80-700-6×7-1500 PDF [47.5KB] DXF [54.8KB] SC80-800-5×4-1600 SC80-800-6×4-1600 SC80-800-6×5-1600 SC80-800-6×7-1600 PDF [47.7KB] DXF [56.4KB] SC80-900-7×3-1700 SC80-900-8×3-1700 SC80-900-6×5-1700 SC80-900-8×5-1700 PDF [47.4KB] DXF [55.9KB] SC80-1000-7×3-1800 SC80-1000-8×3-1800 SC80-1000-6×5-1800 SC80-1000-8×5-1800 PDF [47.8KB] DXF [57.3KB] SC80-1100-7×3-1900 SC80-1100-8×3-1900 SC80-1100-6×5-1900 SC80-1100-8×5-1900 PDF [48.9KB] DXF [58.1KB] SC80-1200-9×2-2000 SC80-1200-8×3-2000 SC80-1200-7.5×4-2000 SC80-1200-8×5-2000 PDF [48.9KB] DXF [58.2KB] SC80-1300-9×2-2100 SC80-1300-8×3-2100 SC80-1300-7.5×4-2100 SC80-1300-8×5-2100 PDF [48.9KB] DXF [58.3KB] SC80-1400-9×2-2200 SC80-1400-8×3-2200 SC80-1400-7.5×4-2200 SC80-1400-8×5-2200 PDF [49.8KB] DXF [58.2KB] SC80-1500-9×2-2300 SC80-1500-8×3-2300 SC80-1500-7.5×4-2300 SC80-1500-8×5-2300 PDF [49.7KB] DXF [58.0KB]
- 500㎜変形すべり板
-
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード SC80-300-3×7-1300 SC80-300-3×8-1300 SC80-300-3×10-1300 - PDF [46.3KB] DXF [52.8KB] SC80-400-4×5-1400 SC80-400-4×6-1400 SC80-400-4×8-1400 SC80-400-4×10-1400 PDF [46.7KB] DXF [54.0KB] SC80-500-4×5-1500 SC80-500-4×6-1500 SC80-500-5×6-1500 SC80-500-4×10-1500 PDF [46.7KB] DXF [53.1KB] SC80-600-5×4-1600 SC80-600-6×4-1600 SC80-600-6×5-1600 SC80-600-6×7-1600 PDF [47.3KB] DXF [54.7KB] SC80-700-5×4-1700 SC80-700-6×4-1700 SC80-700-6×5-1700 SC80-700-6×7-1700 PDF [47.4KB] DXF [54.7KB] SC80-800-5×4-1800 SC80-800-6×4-1800 SC80-800-6×5-1800 SC80-800-6×7-1800 PDF [48.1KB] DXF [56.9KB] SC80-900-7×3-1900 SC80-900-8×3-1900 SC80-900-6×5-1900 SC80-900-8×5-1900 PDF [48.1KB] DXF [58.3KB] SC80-1000-7×3-2000 SC80-1000-8×3-2000 SC80-1000-6×5-2000 SC80-1000-8×5-2000 PDF [48.4KB] .9 DXF [57.9KB] SC80-1100-7×3-2100 SC80-1100-8×3-2100 SC80-1100-6×5-2100 SC80-1100-8×5-2100 PDF [48.5KB] DXF [58.2KB] SC80-1200-9×2-2200 SC80-1200-8×3-2200 SC80-1200-7.5×4-2200 SC80-1200-8×5-2200 PDF [49.6KB] DXF [58.7KB] SC80-1300-9×2-2300 SC80-1300-8×3-2300 SC80-1300-7.5×4-2300 SC80-1300-8×5-2300 PDF [48.9KB] DXF [57.6KB] SC80-1400-9×2-2400 SC80-1400-8×3-2400 SC80-1400-7.5×4-2400 SC80-1400-8×5-2400 PDF [49.3KB] DXF [58.1KB] SC80-1500-9×2-2500 SC80-1500-8×3-2500 SC80-1500-7.5×4-2500 SC80-1500-8×5-2500 PDF [50.4KB] DXF [59.0KB]
- 600㎜変形すべり板
-
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード SC80-300-3×7-1500 SC80-300-3×8-1500 SC80-300-3×10-1500 - PDF [122KB] DXF [65.6KB] SC80-400-4×5-1600 SC80-400-4×6-1600 SC80-400-4×8-1600 SC80-400-4×10-1600 PDF [122KB] DXF [67.2KB] SC80-500-4×5-1700 SC80-500-4×6-1700 SC80-500-5×6-1700 SC80-500-4×10-1700 PDF [122KB] DXF [66.4KB] SC80-600-5×4-1800 SC80-600-6×4-1800 SC80-600-6×5-1800 SC80-600-6×7-1800 PDF [124KB] DXF [66.6KB] SC80-700-5×4-1900 SC80-700-6×4-1900 SC80-700-6×5-1900 SC80-700-6×7-1900 PDF [127KB] DXF [71.4KB] SC80-800-5×4-2000 SC80-800-6×4-2000 SC80-800-6×5-2000 SC80-800-6×7-2000 PDF [128KB] DXF [72.9KB] SC80-900-7×3-2100 SC80-900-8×3-2100 SC80-900-6×5-2100 SC80-900-8×5-2100 PDF [127KB] DXF [69.9KB] SC80-1000-7×3-2200 SC80-1000-8×3-2200 SC80-1000-6×5-2200 SC80-1000-8×5-2200 PDF [129KB] DXF [73.1KB] SC80-1100-7×3-2300 SC80-1100-8×3-2300 SC80-1100-6×5-2300 SC80-1100-8×5-2300 PDF [127KB] DXF [72.7KB] SC80-1200-9×2-2400 SC80-1200-8×3-2400 SC80-1200-7.5×4-2400 SC80-1200-8×5-2400 PDF [129KB] DXF [73.9KB] SC80-1300-9×2-2500 SC80-1300-8×3-2500 SC80-1300-7.5×4-2500 SC80-1300-8×5-2500 PDF [133KB] DXF [74.4KB] SC80-1400-9×2-2600 SC80-1400-8×3-2600 SC80-1400-7.5×4-2600 SC80-1400-8×5-2600 PDF [130KB] DXF [75.1KB] SC80-1500-9×2-2700 SC80-1500-8×3-2700 SC80-1500-7.5×4-2700 SC80-1500-8×5-2700 PDF [131KB] DXF [76.7KB]
- 700㎜変形すべり板
-
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード SC80-300-3×7-1700 SC80-300-3×8-1700 SC80-300-3×10-1700 - PDF [46.4KB] DXF [52.8KB] SC80-400-4×5-1800 SC80-400-4×6-1800 SC80-400-4×8-1800 SC80-400-4×10-1800 PDF [46.7KB] DXF [54.3KB] SC80-500-4×5-1900 SC80-500-4×6-1900 SC80-500-5×6-1900 SC80-500-4×10-1900 PDF [47.3KB] DXF [55.4KB] SC80-600-5×4-2000 SC80-600-6×4-2000 SC80-600-6×5-2000 SC80-600-6×7-2000 PDF [47.4KB] DXF [56.2KB] SC80-700-5×4-2100 SC80-700-6×4-2100 SC80-700-6×5-2100 SC80-700-6×7-2100 PDF [48.1KB] DXF [57.3KB] SC80-800-5×4-2200 SC80-800-6×4-2200 SC80-800-6×5-2200 SC80-800-6×7-2200 PDF [48.7KB] DXF [58.0KB] SC80-900-7×3-2300 SC80-900-8×3-2300 SC80-900-6×5-2300 SC80-900-8×5-2300 PDF [48.4KB] DXF [57.5KB] SC80-1000-7×3-2400 SC80-1000-8×3-2400 SC80-1000-6×5-2400 SC80-1000-8×5-2400 PDF [48.1KB] DXF [58.0KB] SC80-1100-7×3-2500 SC80-1100-8×3-2500 SC80-1100-6×5-2500 SC80-1100-8×5-2500 PDF [48.7KB] DXF [58.7KB] SC80-1200-9×2-2600 SC80-1200-8×3-2600 SC80-1200-7.5×4-2600 SC80-1200-8×5-2600 PDF [49.0KB] DXF [59.7KB] SC80-1300-9×2-2700 SC80-1300-8×3-2700 SC80-1300-7.5×4-2700 SC80-1300-8×5-2700 PDF [49.2KB] DXF [60.0KB] SC80-1400-9×2-2800 SC80-1400-8×3-2800 SC80-1400-7.5×4-2800 SC80-1400-8×5-2800 PDF [50.1KB] DXF [59.6KB] SC80-1500-9×2-2900 SC80-1500-8×3-2900 SC80-1500-7.5×4-2900 SC80-1500-8×5-2900 PDF [49.9KB] DXF [60.2KB]
- 800㎜変形すべり板
-
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード SC80-300-3×7-1900 SC80-300-3×8-1900 SC80-300-3×10-1900 - PDF [46.9KB] DXF [55.1KB] SC80-400-4×5-2000 SC80-400-4×6-2000 SC80-400-4×8-2000 SC80-400-4×10-2000 PDF [47.0KB] DXF [55.3KB] SC80-500-4×5-2100 SC80-500-4×6-2100 SC80-500-5×6-2100 SC80-500-4×10-2100 PDF [47.1KB] DXF [55.7KB] SC80-600-5×4-2200 SC80-600-6×4-2200 SC80-600-6×5-2200 SC80-600-6×7-2200 PDF [48.0KB] DXF [56.4KB] SC80-700-5×4-2300 SC80-700-6×4-2300 SC80-700-6×5-2300 SC80-700-6×7-2300 PDF [48.0KB] DXF [56.5KB] SC80-800-5×4-2400 SC80-800-6×4-2400 SC80-800-6×5-2400 SC80-800-6×7-2400 PDF [48.4KB] DXF [57.9KB] SC80-900-7×3-2500 SC80-900-8×3-2500 SC80-900-6×5-2500 SC80-900-8×5-2500 PDF [48.9KB] DXF [58.7KB] SC80-1000-7×3-2600 SC80-1000-8×3-2600 SC80-1000-6×5-2600 SC80-1000-8×5-2600 PDF [48.5KB] DXF [59.1KB] SC80-1100-7×3-2700 SC80-1100-8×3-2700 SC80-1100-6×5-2700 SC80-1100-8×5-2700 PDF [49.1KB] DXF [64.2KB] SC80-1200-9×2-2800 SC80-1200-8×3-2800 SC80-1200-7.5×4-2800 SC80-1200-8×5-2800 PDF [49.8KB] DXF [60.0KB] SC80-1300-9×2-2900 SC80-1300-8×3-2900 SC80-1300-7.5×4-2900 SC80-1300-8×5-2900 PDF [49.8KB] DXF [60.0KB] SC80-1400-9×2-3000 SC80-1400-8×3-3000 SC80-1400-7.5×4-3000 SC80-1400-8×5-3000 PDF [50.5KB] DXF [60.0KB] SC80-1500-9×2-3100 SC80-1500-8×3-3100 SC80-1500-7.5×4-3100 SC80-1500-8×5-3100 PDF [50.1KB] DXF [60.4KB]
