弾性すべり支承／高摩擦・中摩擦（外観寸法資料）
- 各部材の図面（PDF・DXF形式）をご用意しています。以下のリンクよりダウンロードしてご活用ください。
- 各図面は私的・商用として自由に使用していただけますが、図面の再販売はお断りしております。
- 製品型式の一例
-

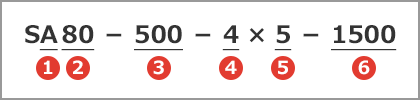

![SA[1]80[2]-500[3]-4[4]×5[5]-1500[6]](img/img_product02-02_01.png)
- 1すべり材の種類／A：高摩擦 B：中摩擦 C：低摩擦
- 2ゴム材料の種類／80←せん断弾性率：0.78（N/mm2）、60←せん断弾性率：0.59（N/mm2）
- 3ゴムおよびすべり材の直径（mm）
- 4ゴム1層厚さ（mm）
- 5ゴム層数
- 6すべり板の外形 Lsus（mm）
- 400㎜変形すべり板
-
以下の表の型式「S000」は、すべり材 および ゴム材料の種類「SA80：高摩擦 R80タイプ」「SB60：中摩擦 R60タイプ」「SB80：中摩擦 R80タイプ」です。
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード S000-300-3×7-1100 S000-300-3×8-1100 S000-300-3×10-1100 - PDF [47.0KB] DXF [48.5KB] S000-400-4×5-1200 S000-400-4×6-1200 S000-400-4×8-1200 S000-400-4×10-1200 PDF [47.2KB] DXF [49.1KB] S000-500-4×5-1300 S000-500-4×6-1300 S000-500-5×6-1300 S000-500-4×10-1300 PDF [47.4KB] DXF [49.1KB] S000-600-5×4-1400 S000-600-6×4-1400 S000-600-6×5-1400 S000-600-6×7-1400 PDF [47.8KB] DXF [50.1KB] S000-700-5×4-1500 S000-700-6×4-1500 S000-700-6×5-1500 S000-700-6×7-1500 PDF [48.8KB] DXF [51.4KB] S000-800-5×4-1600 S000-800-6×4-1600 S000-800-6×5-1600 S000-800-6×7-1600 PDF [48.8KB] DXF [51.7KB] S000-900-7×3-1700 S000-900-8×3-1700 S000-900-6×5-1700 S000-900-8×5-1700 PDF [49.0KB] DXF [52.2KB] S000-1000-7×3-1800 S000-1000-8×3-1800 S000-1000-6×5-1800 S000-1000-8×5-1800 PDF [48.3KB] DXF [52.2KB] S000-1100-7×3-1900 S000-1100-8×3-1900 S000-1100-6×5-1900 S000-1100-8×5-1900 PDF [48.5KB] DXF [51.9KB] S000-1200-9×2-2000 S000-1200-8×3-2000 S000-1200-7.5×4-2000 S000-1200-8×5-2000 PDF [49.8KB] DXF [51.9KB] S000-1300-9×2-2100 S000-1300-8×3-2100 S000-1300-7.5×4-2100 S000-1300-8×5-2100 PDF [49.8KB] DXF [51.9KB] S000-1400-9×2-2200 S000-1400-8×3-2200 S000-1400-7.5×4-2200 S000-1400-8×5-2200 PDF [49.8KB] DXF [52.4KB] S000-1500-9×2-2300 S000-1500-8×3-2300 S000-1500-7.5×4-2300 S000-1500-8×5-2300 PDF [50.7KB] DXF [52.3KB]
- 500㎜変形すべり板
-
以下の表の型式「S000」は、すべり材 および ゴム材料の種類「SA80：高摩擦 R80タイプ」「SB60：中摩擦 R60タイプ」「SB80：中摩擦 R80タイプ」です。
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード S000-300-3×7-1300 S000-300-3×8-1300 S000-300-3×10-1300 - PDF [46.8KB] DXF [48.5KB] S000-400-4×5-1400 S000-400-4×6-1400 S000-400-4×8-1400 S000-400-4×10-1400 PDF [47.4KB] DXF [49.1KB] S000-500-4×5-1500 S000-500-4×6-1500 S000-500-5×6-1500 S000-500-4×10-1500 PDF [47.9KB] DXF [51.6KB] S000-600-5×4-1600 S000-600-6×4-1600 S000-600-6×5-1600 S000-600-6×7-1600 PDF [47.6KB] DXF [52.7KB] S000-700-5×4-1700 S000-700-6×4-1700 S000-700-6×5-1700 S000-700-6×7-1700 PDF [49.1KB] DXF [54.7KB] S000-800-5×4-1800 S000-800-6×4-1800 S000-800-6×5-1800 S000-800-6×7-1800 PDF [49.0KB] DXF [54.9KB] S000-900-7×3-1900 S000-900-8×3-1900 S000-900-6×5-1900 S000-900-8×5-1900 PDF [49.2KB] DXF [55.3KB] S000-1000-7×3-2000 S000-1000-8×3-2000 S000-1000-6×5-2000 S000-1000-8×5-2000 PDF [48.8KB] DXF [55.3KB] S000-1100-7×3-2100 S000-1100-8×3-2100 S000-1100-6×5-2100 S000-1100-8×5-2100 PDF [49.0KB] DXF [54.9KB] S000-1200-9×2-2200 S000-1200-8×3-2200 S000-1200-7.5×4-2200 S000-1200-8×5-2200 PDF [49.2KB] DXF [55.0KB] S000-1300-9×2-2300 S000-1300-8×3-2300 S000-1300-7.5×4-2300 S000-1300-8×5-2300 PDF [49.4KB] DXF [54.9KB] S000-1400-9×2-2400 S000-1400-8×3-2400 S000-1400-7.5×4-2400 S000-1400-8×5-2400 PDF [49.0KB] DXF [55.4KB] S000-1500-9×2-2500 S000-1500-8×3-2500 S000-1500-7.5×4-2500 S000-1500-8×5-2500 PDF [49.9KB] DXF [55.4KB]
- 600㎜変形すべり板
-
以下の表の型式「S000」は、すべり材 および ゴム材料の種類「SA80：高摩擦 R80タイプ」「SB60：中摩擦 R60タイプ」「SB80：中摩擦 R80タイプ」です。
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード S000-300-3×7-1500 S000-300-3×8-1500 S000-300-3×10-1500 - PDF [126KB] DXF [61.6KB] S000-400-4×5-1600 S000-400-4×6-1600 S000-400-4×8-1600 S000-400-4×10-1600 PDF [126KB] DXF [62.3KB] S000-500-4×5-1700 S000-500-4×6-1700 S000-500-5×6-1700 S000-500-4×10-1700 PDF [127KB] DXF [62.6KB] S000-600-5×4-1800 S000-600-6×4-1800 S000-600-6×5-1800 S000-600-6×7-1800 PDF [129KB] DXF [63.5KB] S000-700-5×4-1900 S000-700-6×4-1900 S000-700-6×5-1900 S000-700-6×7-1900 PDF [129KB] DXF [65.2KB] S000-800-5×4-2000 S000-800-6×4-2000 S000-800-6×5-2000 S000-800-6×7-2000 PDF [131KB] DXF [65.4KB] S000-900-7×3-2100 S000-900-8×3-2100 S000-900-6×5-2100 S000-900-8×5-2100 PDF [130KB] DXF [65.8KB] S000-1000-7×3-2200 S000-1000-8×3-2200 S000-1000-6×5-2200 S000-1000-8×5-2200 PDF [131KB] DXF [65.9KB] S000-1100-7×3-2300 S000-1100-8×3-2300 S000-1100-6×5-2300 S000-1100-8×5-2300 PDF [144KB] DXF [66.4KB] S000-1200-9×2-2400 S000-1200-8×3-2400 S000-1200-7.5×4-2400 S000-1200-8×5-2400 PDF [131KB] DXF [66.4KB] S000-1300-9×2-2500 S000-1300-8×3-2500 S000-1300-7.5×4-2500 S000-1300-8×5-2500 PDF [133KB] DXF [66.4KB] S000-1400-9×2-2600 S000-1400-8×3-2600 S000-1400-7.5×4-2600 S000-1400-8×5-2600 PDF [132KB] DXF [66.8KB] S000-1500-9×2-2700 S000-1500-8×3-2700 S000-1500-7.5×4-2700 S000-1500-8×5-2700 PDF [133KB] DXF [67.0KB]
- 700㎜変形すべり板
-
以下の表の型式「S000」は、すべり材 および ゴム材料の種類「SA80：高摩擦 R80タイプ」「SB60：中摩擦 R60タイプ」「SB80：中摩擦 R80タイプ」です。
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード S000-300-3×7-1700 S000-300-3×8-1700 S000-300-3×10-1700 - PDF [46.5KB] DXF [48.9KB] S000-400-4×5-1800 S000-400-4×6-1800 S000-400-4×8-1800 S000-400-4×10-1800 PDF [47.3KB] DXF [49.3KB] S000-500-4×5-1900 S000-500-4×6-1900 S000-500-5×6-1900 S000-500-4×10-1900 PDF [47.1KB] DXF [49.3KB] S000-600-5×4-2000 S000-600-6×4-2000 S000-600-6×5-2000 S000-600-6×7-2000 PDF [47.0KB] DXF [53.1KB] S000-700-5×4-2100 S000-700-6×4-2100 S000-700-6×5-2100 S000-700-6×7-2100 PDF [48.1KB] DXF [51.3KB] S000-800-5×4-2200 S000-800-6×4-2200 S000-800-6×5-2200 S000-800-6×7-2200 PDF [49.4KB] DXF [51.8KB] S000-900-7×3-2300 S000-900-8×3-2300 S000-900-6×5-2300 S000-900-8×5-2300 PDF [48.7KB] DXF [55.4KB] S000-1000-7×3-2400 S000-1000-8×3-2400 S000-1000-6×5-2400 S000-1000-8×5-2400 PDF [48.7KB] DXF [51.8KB] S000-1100-7×3-2500 S000-1100-8×3-2500 S000-1100-6×5-2500 S000-1100-8×5-2500 PDF [49.2KB] DXF [52.1KB] S000-1200-9×2-2600 S000-1200-8×3-2600 S000-1200-7.5×4-2600 S000-1200-8×5-2600 PDF [49.1KB] DXF [55.0KB] S000-1300-9×2-2700 S000-1300-8×3-2700 S000-1300-7.5×4-2700 S000-1300-8×5-2700 PDF [50.3KB] DXF [52.1KB] S000-1400-9×2-2800 S000-1400-8×3-2800 S000-1400-7.5×4-2800 S000-1400-8×5-2800 PDF [50.1KB] DXF [52.2KB] S000-1500-9×2-2900 S000-1500-8×3-2900 S000-1500-7.5×4-2900 S000-1500-8×5-2900 PDF [50.2KB] DXF [52.5KB]
- 800㎜変形すべり板
-
以下の表の型式「S000」は、すべり材 および ゴム材料の種類「SA80：高摩擦 R80タイプ」「SB60：中摩擦 R60タイプ」「SB80：中摩擦 R80タイプ」です。
ゴム層厚 20㎜ ゴム層厚 25㎜ ゴム層厚 30㎜ ゴム層厚 40㎜ ダウンロード S000-300-3×7-1900 S000-300-3×8-1900 S000-300-3×10-1900 - PDF [46.7KB] DXF [48.8KB] S000-400-4×5-2000 S000-400-4×6-2000 S000-400-4×8-2000 S000-400-4×10-2000 PDF [47.1KB] DXF [49.3KB] S000-500-4×5-2100 S000-500-4×6-2100 S000-500-5×6-2100 S000-500-4×10-2100 PDF [47.3KB] DXF [49.2KB] S000-600-5×4-2200 S000-600-6×4-2200 S000-600-6×5-2200 S000-600-6×7-2200 PDF [47.8KB] DXF [50.3KB] S000-700-5×4-2300 S000-700-6×4-2300 S000-700-6×5-2300 S000-700-6×7-2300 PDF [48.7KB] DXF [51.4KB] S000-800-5×4-2400 S000-800-6×4-2400 S000-800-6×5-2400 S000-800-6×7-2400 PDF [49.0KB] DXF [51.6KB] S000-900-7×3-2500 S000-900-8×3-2500 S000-900-6×5-2500 S000-900-8×5-2500 PDF [49.0KB] DXF [52.2KB] S000-1000-7×3-2600 S000-1000-8×3-2600 S000-1000-6×5-2600 S000-1000-8×5-2600 PDF [49.1KB] DXF [51.9KB] S000-1100-7×3-2700 S000-1100-8×3-2700 S000-1100-6×5-2700 S000-1100-8×5-2700 PDF [49.4KB] DXF [52.0KB] S000-1200-9×2-2800 S000-1200-8×3-2800 S000-1200-7.5×4-2800 S000-1200-8×5-2800 PDF [50.1KB] DXF [51.9KB] S000-1300-9×2-2900 S000-1300-8×3-2900 S000-1300-7.5×4-2900 S000-1300-8×5-2900 PDF [50.4KB] DXF [52.1KB] S000-1400-9×2-3000 S000-1400-8×3-3000 S000-1400-7.5×4-3000 S000-1400-8×5-3000 PDF [50.3KB] DXF [52.5KB] S000-1500-9×2-3100 S000-1500-8×3-3100 S000-1500-7.5×4-3100 S000-1500-8×5-3100 PDF [50.6KB] DXF [52.4KB]
